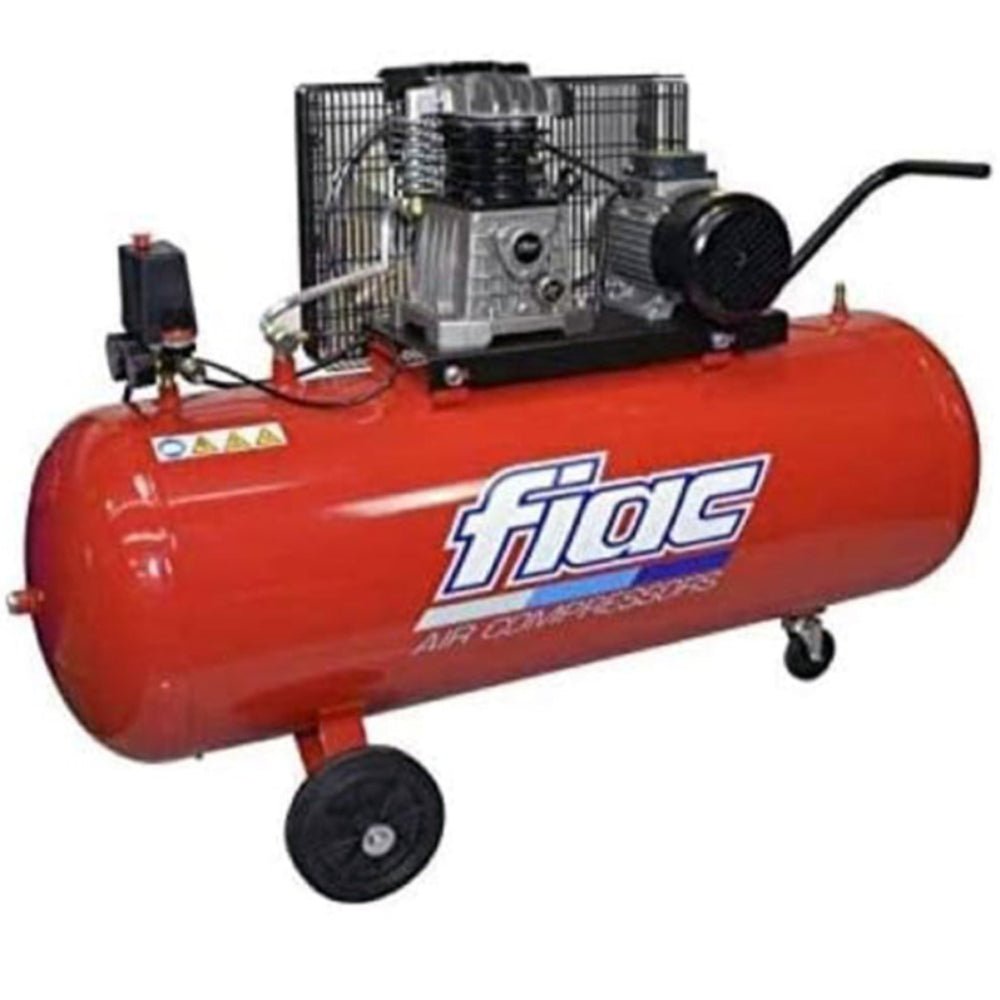

FIAC AB 150/268 – 2Hp – Mobile – 10bar – 1Ph The FIAC AB 150/268 – 2Hp – Mobile – 10bar – 1Ph is a professional lubricated belt driven compressor single stage, equipped with pump model AB268 with two-cylinders made of cast iron, with a vessel size of 150 liters. It ensures high performance at a low rotation speed, which helps prevent engine overheating and significantly extends the compressor’s lifespan. FIAC’s new single stage range represents a noteworthy improvement in technology, keeping the focus on performance and value. All FIAC pumps are equipped with large oil level indicator, oil dipstick and large flywheel for better cooling. Steel belt guard for a better protection also during transportation. Specification Value Weight 78 kg Width 400 cm Height 800 cm Length 1500 cm Specification Value Max Pressure (Bar) 10 Bar Max Pressure (Psi) 145 PSI Pump speed 1240 Rpm Vessel size (lt) 150 Liter Vessel size (gal) 40 Gal Configuration Mobile Air Displacement (l/min) 250 l/min Air Displacement (cfm) 8.8 Cfm Lubrication Oil Lubricated Oil capacity 0.45 Liter Pump Element AB268 Motor (hp) 2 Hp Motor (kw) 1.5 kW Supply voltage 230 V Frequency 50 Hz Number of phases 1 Noise Level (LPA) 72 dB(A) Noise Level (LWA) 92 dB(A)
