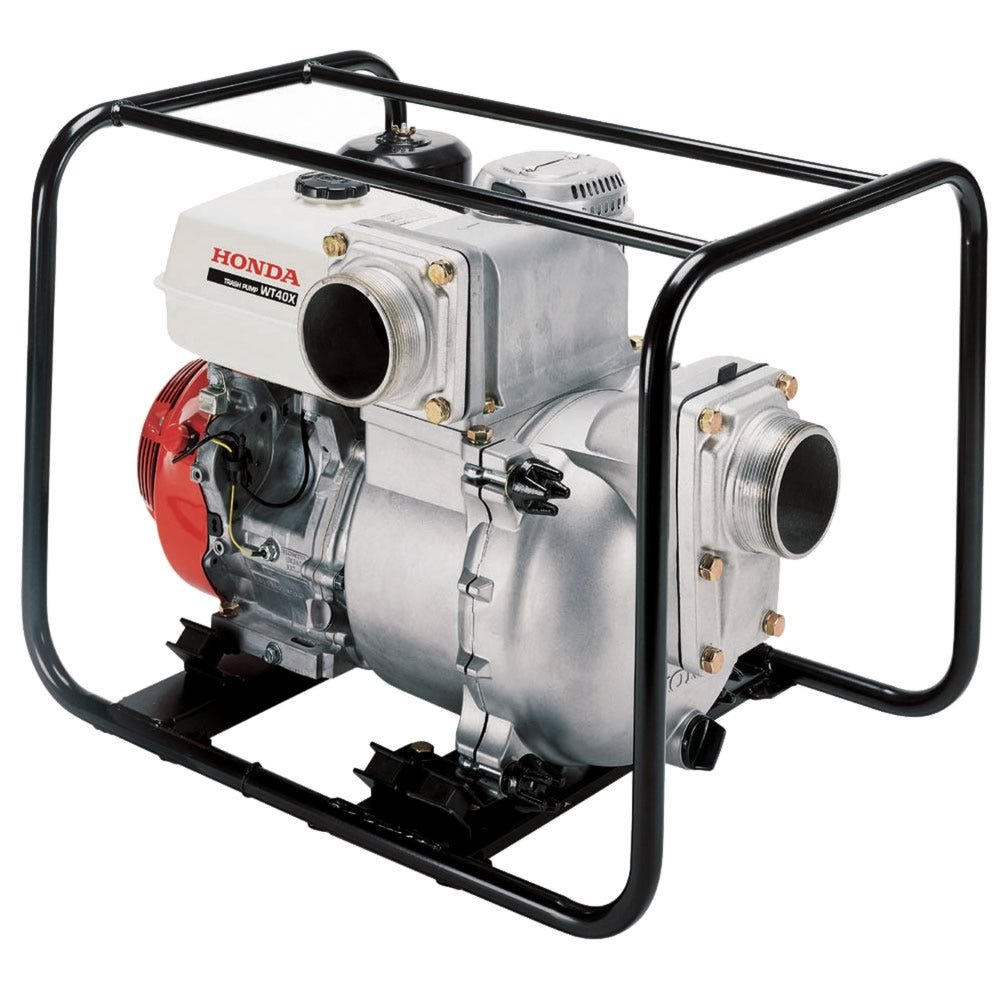

Wt40X-Trash-Pump

WT40 WT40XK3A 4″ trash pump طلمبة مجاري 4″ / 4″ هوندا – محرك 390GX Net Power ( h.p/rpm): 11.2 / 3600 – – أقصي سحب 8 متر – أقصي سحب وطرد 26 متر – مزودة بجهاز انذار الزيت – ضغط الطلمبة PSI37 – تستخدم في المخلفات الصلبة . – 1640 لتر / دقيقة – بلد المنشأ هوندا اليابان DATASHEET- https://cdn.powerequipment.honda.com/pe/pdf/manuals/00X31YG06130.pdf 423 gal./min capacity Solid handling capability up to 1 1/16″ Cast iron volute and impeller Quick clean out port Specifications Engine GX390 Displacement 389 cc Bore and stroke 3.5″ x 2.5″ Compression Ratio 8.2:1 Oil Alert Std Pump Type Trash Centrifugal Self-priming Volute Rigid Mounted Cast Iron w/ Stainless Wear Plate Impeller Conical Cast Iron Mechanical Seal (Pump case / impeller) Silicon Carbide/Silicon Carbide Priming time 150 sec. @16.4 ft. Drive system Direct Discharge capacity 423 gal/min Suction port diameter 4″ Discharge port diameter 4″ Total head lift 82 ft. Suction head lift 26 ft. Maximum pressure 36 psi Solids handling 1 1/16 inches Dimensions (LxWxH) 28.9″ x 21.1″ x 22.2″ Dry weight 172 lbs. Fuel Capacity 1.6 gal Run Time @ Max Discharge 1.5 hr Strainer Part # 78325-YG2-003 Residential Warranty 24 months Commercial Warranty 12 months Pump Performance
